22.5CC HEDGE TRIMMER HEDGE TRIMMER
KNK Art No.: KM0409028

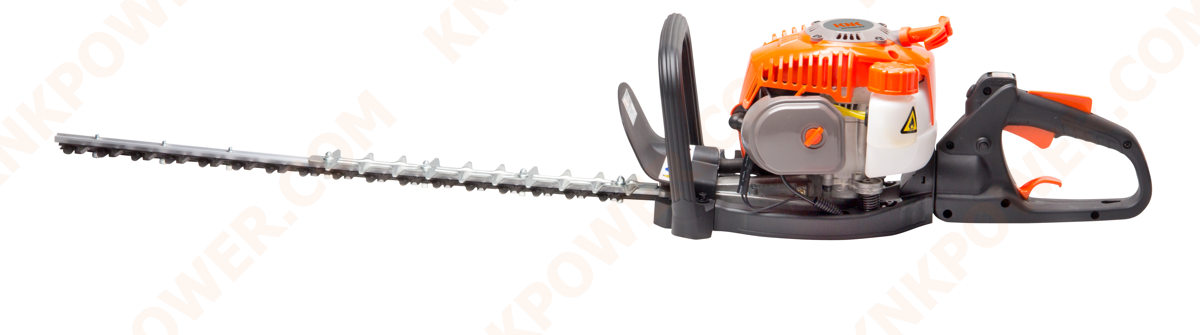

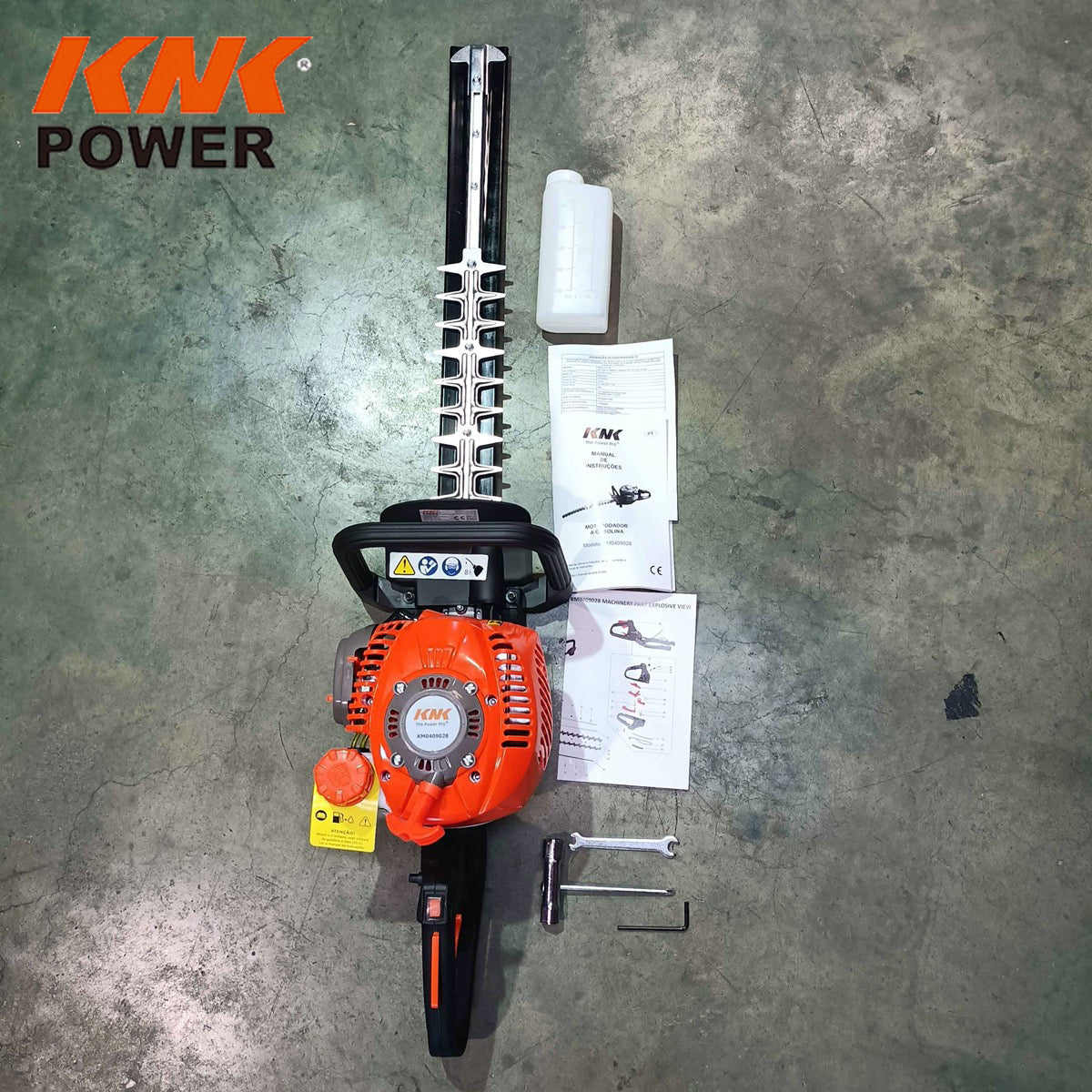

22.5CC HEDGE TRIMMER
Engine: 22.5cc
Power: 0.75kw/7500r/min
Blade length: 600mm
Teeth distance: 28mm
Packing: 116x20x28cm/1PC
N.W./G.W.: 5.95/7kgs
20'FCL: 450PCS
Power: 0.75kw/7500r/min
Blade length: 600mm
Teeth distance: 28mm
Packing: 116x20x28cm/1PC
N.W./G.W.: 5.95/7kgs
20'FCL: 450PCS
Fit For Models.
HEDGE TRIMMER
Product Net Weight
5950g ≈ 5.95 kgs ≈ 209.88oz ≈ 13.12lbs
Fit For Model (Replacement Parts)
Related Brands (Replacement Parts)
Related Categories

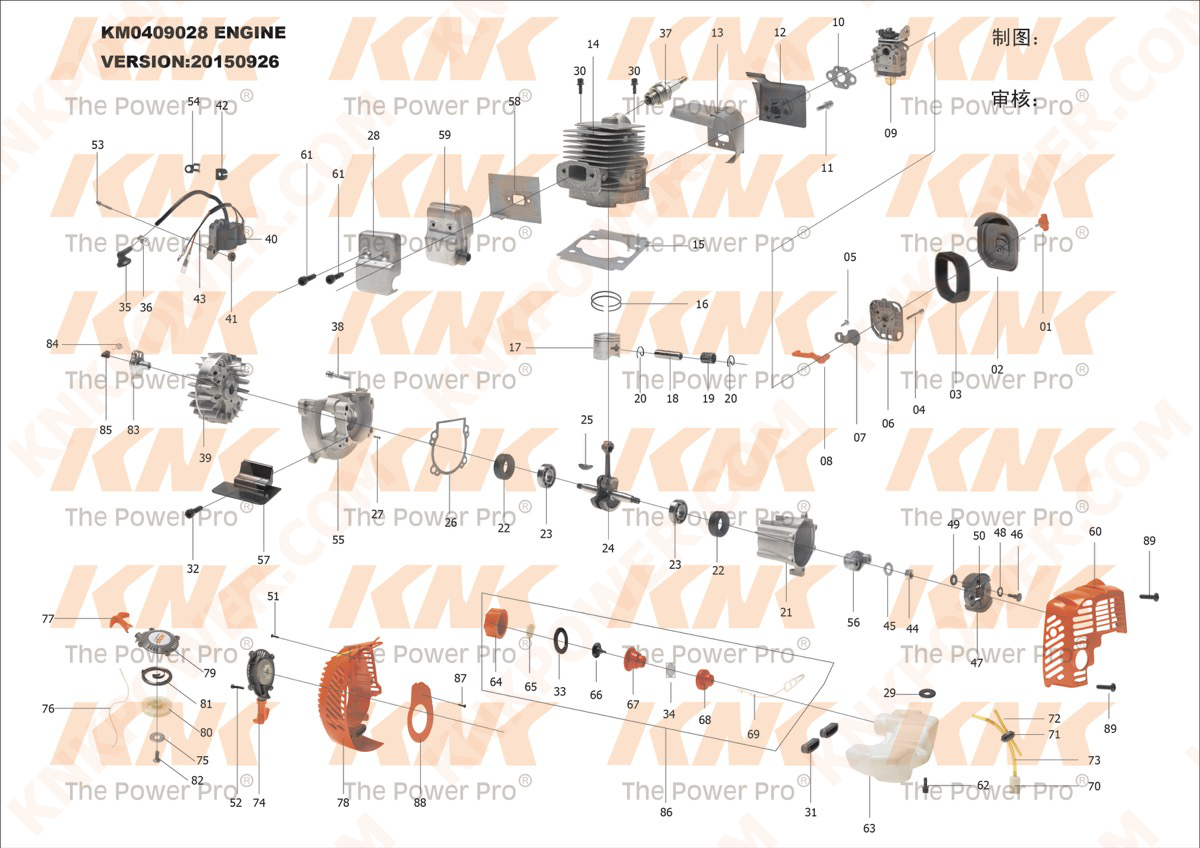

↘︎SPARE PARTS LIST
| No. | KNK Art No. | Description | Qty | Button |
|---|
| E1 | KM0409028-E1 | SCREW | 1 | More Info |
| E10 | KM0409028-E10 | GASKET | 1 | More Info |
| E11 | KM0409028-E11 | SCREW M5*20 | 2 | More Info |
| E12 | KM0409028-E12 | ADMITTING PIPE ASSY. | 1 | More Info |
| E13 | KM0409028-E13 | GASKET | 1 | More Info |
| E14 | KM0409028-E14 | CYLINDER | 1 | More Info |
| E15 | KM0409028-E15 | GASKET | 1 | More Info |
| E16 | KM0409028-E16 | PISTON RING | 1 | More Info |
| E17 | KM0409028-E17 | PISTON | 1 | More Info |
| E18 | KM0409028-E18 | PISTON PIN | 1 | More Info |
| E19 | KM0409028-E19 | BEARING | 1 | More Info |
| E2 | KM0409028-E2 | OUTSIDE COVER | 1 | More Info |
| E20 | KM0409028-E20 | RING | 2 | More Info |
| E21 | KM0409028-E21 | CRANK CASE | 1 | More Info |
| E22 | KM0409028-E22 | SEAL | 2 | More Info |
| E23 | KM0409028-E23 | BEARING 6001/P5 | 2 | More Info |
| E24 | KM0409028-E24 | CRANK SHAFT | 1 | More Info |
| E25 | KM0409028-E25 | KEY | 1 | More Info |
| E3 | KM0409028-E3 | FILTER NET | 1 | More Info |
| E4 | KM0409028-E4 | SCREW M5*55 | 2 | More Info |
| E5 | KM0409028-E5 | SCREW | 1 | More Info |
| E6 | KM0409028-E6 | INSIDE COVER | 1 | More Info |
| E7 | KM0409028-E7 | CHOKE | 1 | More Info |
| E8 | KM0409028-E8 | CHOKE HANDLE | 1 | More Info |
| E9 | KM0409028-E9 | CARBURETOR | 1 | More Info |
| E26 | KM0409028-E26 | GASKET | 1 | More Info |
| E27 | KM0409028-E27 | PIN 3*10 | 2 | More Info |
| E28 | KM0409028-E28 | COVER | 1 | More Info |
| E29 | KM0409028-E29 | GASKET | 1 | More Info |
| E30 | KM0409028-E30 | SCREW M5*20 | 2 | More Info |
| E31 | KM0409028-E31 | RUBBER COVER | 2 | More Info |
| E32 | KM0409028-E32 | SCREW M4*14 | 1 | More Info |
| E33 | KM0409028-E33 | WASHER | 1 | More Info |
| E34 | KM0409028-E34 | VALVE B | 1 | More Info |
| E35 | KM0409028-E35 | CAP | 1 | More Info |
| E36 | KM0409028-E36 | SPRING | 1 | More Info |
| E37 | KM0409028-E37 | SPARK PLUG | 1 | More Info |
| E38 | KM0409028-E38 | SCREW M5*25 | 4 | More Info |
| E39 | KM0409028-E39 | FLY WHEEL | 1 | More Info |
| E40 | KM0409028-E40 | COIL | 1 | More Info |
| E41 | KM0409028-E41 | GASKET | 2 | More Info |
| E42 | KM0409028-E42 | RUBBER PLUG | 1 | More Info |
| E43 | KM0409028-E43 | CORD COMP. | 1 | More Info |
| E44 | KM0409028-E44 | NUT M8*1 | 1 | More Info |
| E45 | KM0409028-E45 | WASHER 8 | 1 | More Info |
| E46 | KM0409028-E46 | SCREW PIN | 2 | More Info |
| E47 | KM0409028-E47 | EXPANDER ASSY. | 2 | More Info |
| E48 | KM0409028-E48 | WASHER | 2 | More Info |
| E49 | KM0409028-E49 | WASHER | 2 | More Info |
| E50 | KM0409028-E50 | SPRING | 1 | More Info |
| E51 | KM0409028-E51 | SCREW ST4.8*16-F | 4 | More Info |
| E52 | KM0409028-E52 | SCREW M5*16 | 4 | More Info |
| E53 | KM0409028-E53 | SCREW M4*20 | 2 | More Info |
| E54 | KM0409028-E54 | CLIP | 1 | More Info |
| E55 | KM0409028-E55 | CRANK CASE | 1 | More Info |
| E56 | KM0409028-E56 | STAND | 1 | More Info |
| E57 | KM0409028-E57 | CASKET | 1 | More Info |
| E58 | KM0409028-E58 | GASKET | 1 | More Info |
| E59 | KM0409028-E59 | MUFFLER ASSY. | 1 | More Info |
| E60 | KM0409028-E60 | GUIDE COVER | 1 | More Info |
| E61 | KM0409028-E61 | SCREW M5*50-10.9 | 2 | More Info |
| E62 | KM0409028-E62 | SCREW M5*20 | 1 | More Info |
| E63 | KM0409028-E63 | FUEL TANK | 1 | More Info |
| E64 | KM0409028-E64 | FUEL TANK LID | 1 | More Info |
| E65 | KM0409028-E65 | GASKET | 1 | More Info |
| E66 | KM0409028-E66 | INLET | 1 | More Info |
| E67 | KM0409028-E67 | INSIDE LID | 1 | More Info |
| E68 | KM0409028-E68 | INSIDE LID | 1 | More Info |
| E69 | KM0409028-E69 | CHAIN | 1 | More Info |
| E70 | KM0409028-E70 | CLEANER COVER | 1 | More Info |
| E71 | KM0409028-E71 | PLUG | 1 | More Info |
| E72 | KM0409028-E72 | FUEL PIPE | 1 | More Info |
| E73 | KM0409028-E73 | FUEL PIPE | 1 | More Info |
| E74 | KM0409028-E74 | STARTER ASSY. | 1 | More Info |
| E75 | KM0409028-E75 | WASHER 5 | 1 | More Info |
| E76 | KM0409028-E76 | ROPE | 1 | More Info |
| E77 | KM0409028-E77 | START HANDLE | 1 | More Info |
| E78 | KM0409028-E78 | GUIDE COVER | 1 | More Info |
| E79 | KM0409028-E79 | START COVER | 1 | More Info |
| E80 | KM0409028-E80 | START ROPE REEL | 1 | More Info |
| E81 | KM0409028-E81 | RECOIL SPRING | 1 | More Info |
| E82 | KM0409028-E82 | SCREW M5*10 | 1 | More Info |
| E83 | KM0409028-E83 | START REEL | 1 | More Info |
| E84 | KM0409028-E84 | START SPRING | 1 | More Info |
| E85 | KM0409028-E85 | START CLAW | 1 | More Info |
| E86 | KM0409028-E86 | FUEL TANK LID ASSY. | 1 | More Info |
| E87 | KM0409028-E87 | SCREW ST4.2*9-F | 3 | More Info |
| E88 | KM0409028-E88 | GASKET | 1 | More Info |
| E89 | KM0409028-E89 | SCREW ST4.2*16-F | 3 | More Info |

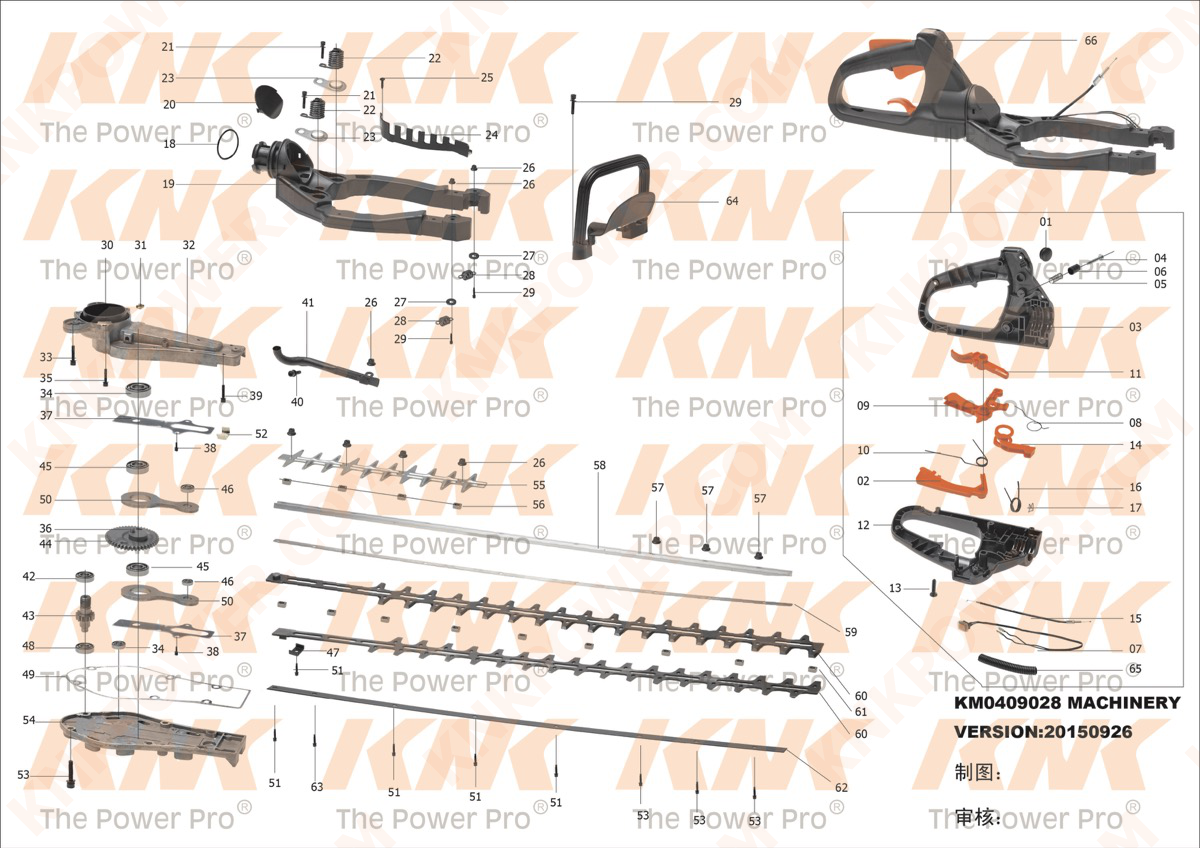

| No. | KNK Art No. | Description | Qty | Button |
|---|
| M1 | KM0409028-M1 | PLUG | 1 | More Info |
| M10 | KM0409028-M10 | SPRING | 1 | More Info |
| M11 | KM0409028-M11 | LEVER GYRAL | 1 | More Info |
| M12 | KM0409028-M12 | HANDLE RIGHT | 1 | More Info |
| M13 | KM0409028-M13 | SCREW ST4.2*16 | 6 | More Info |
| M14 | KM0409028-M14 | LEVER | 1 | More Info |
| M15 | KM0409028-M15 | CABLE COMP. | 1 | More Info |
| M16 | KM0409028-M16 | SPRING | 1 | More Info |
| M17 | KM0409028-M17 | SPRING | 1 | More Info |
| M18 | KM0409028-M18 | SEAL 48.7*3.1 | 1 | More Info |
| M19 | KM0409028-M19 | FRAME | 1 | More Info |
| M2 | KM0409028-M2 | HANDGRIP | 1 | More Info |
| M20 | KM0409028-M20 | FRAME LID | 1 | More Info |
| M21 | KM0409028-M21 | SCREW M5*20 | 2 | More Info |
| M22 | KM0409028-M22 | SPRING | 2 | More Info |
| M23 | KM0409028-M23 | WASHER | 2 | More Info |
| M24 | KM0409028-M24 | COVER | 1 | More Info |
| M25 | KM0409028-M25 | SCREW ST4.2*16 | 1 | More Info |
| M3 | KM0409028-M3 | HANDLE LEFT | 1 | More Info |
| M4 | KM0409028-M4 | SCREW M4*25 | 1 | More Info |
| M5 | KM0409028-M5 | SPRING | 1 | More Info |
| M6 | KM0409028-M6 | LEVER LOCK | 1 | More Info |
| M7 | KM0409028-M7 | SWITCH | 1 | More Info |
| M8 | KM0409028-M8 | SPRING | 1 | More Info |
| M9 | KM0409028-M9 | LEVER THROTLE | 1 | More Info |
| M26 | KM0409028-M26 | NUT M5 | 7 | More Info |
| M27 | KM0409028-M27 | WASHER | 2 | More Info |
| M28 | KM0409028-M28 | SPRING | 2 | More Info |
| M29 | KM0409028-M29 | SCREW M5*25 | 4 | More Info |
| M30 | KM0409028-M30 | CLUTCH DRUM COMP. | 1 | More Info |
| M31 | KM0409028-M31 | FUEL CUP M6 | 1 | More Info |
| M32 | KM0409028-M32 | WHEEL BOX | 1 | More Info |
| M33 | KM0409028-M33 | SCREW M5*12 | 2 | More Info |
| M34 | KM0409028-M34 | BEARING 626/P6 | 2 | More Info |
| M35 | KM0409028-M35 | SCREW M5*16 | 3 | More Info |
| M36 | KM0409028-M36 | SHAFT | 1 | More Info |
| M37 | KM0409028-M37 | CUSHION | 2 | More Info |
| M38 | KM0409028-M38 | SCREW M4*10 | 4 | More Info |
| M39 | KM0409028-M39 | SCREW M5*16 | 2 | More Info |
| M40 | KM0409028-M40 | SCREW M5*12 | 1 | More Info |
| M41 | KM0409028-M41 | PIPE EXHAUST | 1 | More Info |
| M42 | KM0409028-M42 | BEARING 6001-2RS/P6 | 1 | More Info |
| M43 | KM0409028-M43 | GEAR SHAFT | 1 | More Info |
| M44 | KM0409028-M44 | GEAR AND BRACE ASSY. | 1 | More Info |
| M45 | KM0409028-M45 | BEARING 61805-2RZ | 2 | More Info |
| M46 | KM0409028-M46 | BEARING 61800-2RS | 2 | More Info |
| M47 | KM0409028-M47 | BRACKET | 1 | More Info |
| M48 | KM0409028-M48 | BEARING 628/P6 | 1 | More Info |
| M49 | KM0409028-M49 | GASKET | 1 | More Info |
| M50 | KM0409028-M50 | CRANK SHAFT | 2 | More Info |
